The event-driven YARP Project

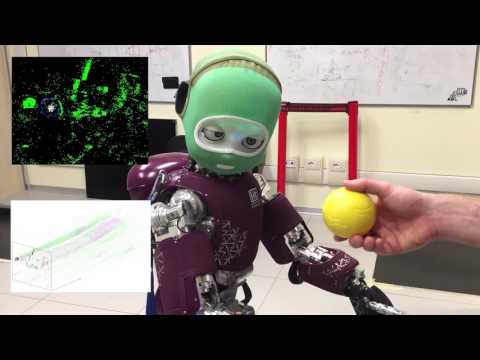

Click to watch the video!

Libraries that handle neuromorphic sensors, such as the dynamic vision sensor, installed on the iCub can be found here, along with algorithms to process the event-based data. Examples include, optical flow, corner detection and ball detection. Demo applications for the iCub robot, and tutorials for running them, include saccading and attention, gaze following a ball, and vergence control.

@article{Glover2017b,
author = {Glover, Arren and Vasco, Valentina and Iacono, Massimiliano and Bartolozzi, Chiara},
doi = {10.3389/frobt.2017.00073},
journal = {Frontiers in Robotics and AI},
pages = {73},
title = {{The event-driven Software Library for YARP — With Algorithms and iCub Applications}},
volume = {4},
year = {2018}
}

Libraries

Event-driven libraries provide basic functionality for handling events in a YARP environment. The library has definitions for:

• codecs to encode/decode events to be compatable with address event representation (AER) formats.
• Sending packets of events in ev::vBottle that is compatible with yarpdatadumper and yarpdataplayer.
• asynchronous reading (ev::queueAllocator) and writing (ev::collectorPort) ports that ensure data is never dropped and giving access to delay information.
• filters for removing salt and pepper noise.
• event containers for organising the event-stream into temporal windows, fixed-size windows, surfaces, and regions-of-interest.
• helper functions to handle event timestamp wrapping and to convert between timestamps and seconds.

Modules

• Optical Flow -- an estimate of object velocity in the visual plane is given by the rate at which the spatial location of events change over time. Such a signal manifests as a manifold in the spatio-temporal event space. Local velocity can be extracted by fitting planes to these manifolds. The ev::vFlow module converts the ED camera output ev::AddressEvent to ev::FlowEvent.
• Cluster Tracking -- The movement of an object across the visual field of an ED camera produces a detailed, unbroken trace of events. Local clusters of events can be tracked by updating a tracker position as new events are observed that belong to the same trace. The spatial distribution of the events can be estimated with a Gaussian distribution. The cluster centre and distribution statistics is output from the ev::vCluster module as a ev::GaussianAE event.
• Corner Detection -- using an event-driven Harris algorithm, the full event stream is filtered to contain only the events falling on the corners of objects or structure in the scene. Corner events are useful to avoid the aperture problem and to reduce the data stream to informative events for further processing. Compared to a traditional camera, the ED corner algorithm requires less processing. ev::vCorner converts ev::AddressEvent to ev::LabelledAE.
• Circle Detection -- detection of circular shapes in the event stream can be performed using an ED Hough transform. As the camera moves on a robot, many background events clutter the detection algorithm. The ev::vCircle module reduces the false positive detections by using optical flow information to provide a more accurate understanding of only the most up-to-date spatial structure. ev::vCircle accepts ev::AddressEvent and ev::FlowEvent and outputs ev::GaussianAE.
• Particle filtering -- probabilistic filtering is used to provide a robust tracking over time. The particle filter is robust to variations in speed of the target by also sampling within the temporal dimension. A observation likelihood function that responds to a circular shape was developed to instigate a comparison with the Hough transform. The tracking position is output as ev::GaussianAE. Future work involves adapting the filter to respond to different target shapes, and templates learned from data.

Applications for the iCub Humanoid Robot

Tutorials for these applications can be found here

• viewing the event-stream in 3D spatio-temporal space.
• calibrating the event-camera with a static fiducial.
• performing saccading and attention.
• ball detection and iCub gaze following.
• performing automatic stereo vergence.

Datasets for use in running some of the tutorials off-line can be found on the same page.

How to Install:

Comprehensive instructions available for installation.

References

Glover, A., and Bartolozzi C. (2016) Event-driven ball detection and gaze fixation in clutter. In IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), October 2016, Daejeon, Korea. Finalist for RoboCup Best Paper Award

Vasco V., Glover A., and Bartolozzi C. (2016) Fast event-based harris corner detection exploiting the advantages of event-driven cameras. In IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), October 2016, Daejeon, Korea.

V. Vasco, A. Glover, Y. Tirupachuri, F. Solari, M. Chessa, and Bartolozzi C. Vergence control with a neuromorphic iCub. In IEEE-RAS International Conference on Humanoid Robots (Humanoids), November 2016, Mexico.
