StarCraft II Replay Analysis with Jupyter Notebooks

In this code pattern we will use Jupyter notebooks to analyze StarCraft II replays and extract interesting insights.

When the reader has completed this code pattern, they will understand how to:

• Create and run a Jupyter notebook in Watson Studio.
• Use Object Storage to access a replay file.
• Use sc2reader to load a replay into a Python object.
• Examine some of the basic replay information in the result.
• Parse the contest details into a usable object.
• Visualize the contest with Bokeh graphics.
• Store the processed replay in Cloudant.

The intended audience for this code pattern is application developers who need to process StarCraft II replay files and build powerful visualizations.

Flow

1. The Developer creates a Jupyter notebook from the included starcraft2_replay_analysis.ipynb file
2. A Starcraft replay file is loaded into IBM Cloud Object Storage
3. The Object is loaded into the Jupyer notebook
4. Processed replay is loaded into Cloudant database for storage

Included components

• IBM Watson Studio: Analyze data using RStudio, Jupyter, and Python in a configured, collaborative environment that includes IBM value-adds, such as managed Spark.
• Cloudant NoSQL DB: Cloudant NoSQL DB is a fully managed data layer designed for modern web and mobile applications that leverages a flexible JSON schema.
• IBM Cloud Object Storage: An IBM Cloud service that provides an unstructured cloud data store to build and deliver cost effective apps and services with high reliability and fast speed to market.

Featured technologies

• Jupyter Notebooks: An open-source web application that allows you to create and share documents that contain live code, equations, visualizations and explanatory text.
• sc2reader: A Python library that extracts data from various Starcraft II resources to power tools and services for the SC2 community.
• pandas: A Python library providing high-performance, easy-to-use data structures.
• Bokeh: A Python interactive visualization library.

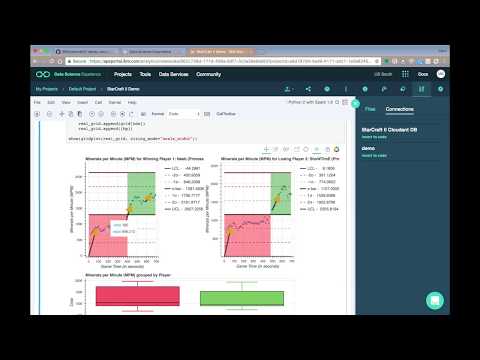

Watch the Video

Steps

Follow these steps to setup and run this developer code pattern. The steps are described in detail below.

1. Clone the repo
2. Create a new Watson Studio project
3. Create a Cloudant service instance
4. Create the notebook in Watson Studio
5. Add the replay file
6. Add the Cloudant credentials to the notebook
7. Run the notebook
8. Analyze the results
9. Save and share

1. Clone the repo

Clone the starcraft2-replay-analysis repo locally. In a terminal, run:

git clone https://github.com/IBM/starcraft2-replay-analysis

2. Create a new Watson Studio project

• Log into IBM's Watson Studio. Once in, you'll land on the dashboard.

• Create a new project by clicking + New project and choosing Data Science:



• Enter a name for the project name and click Create.

• NOTE: By creating a project in Watson Studio a free tier Object Storage service and Watson Machine Learning service will be created in your IBM Cloud account. Select the Free storage type to avoid fees.



• Upon a successful project creation, you are taken to a dashboard view of your project. Take note of the Assets and Settings tabs, we'll be using them to associate our project with any external assets (datasets and notebooks) and any IBM cloud services.



3. Create a Cloudant service instance

• Use the menu for Services > Data Services, then click + Add service and Add and Create a Cloudant service.
• Use the 3-dot actions menu to select Manage in IBM Cloud for the new Cloudant service.
• Click on Service credentials in the left sidebar.
• If credentials were not created, click New credential + to add them.
• Use the View credentials dropdown and copy the credentials to use in the notebook.

4. Create the notebook in Watson Studio

• From the new project Overview panel, click + Add to project on the top right and choose the Notebook asset type.



• Fill in the following information:

  • Select the From URL tab. [1]
  • Enter a Name for the notebook and optionally a description. [2]
  • Under Notebook URL provide the following url: https://github.com/IBM/starcraft2-replay-analysis/blob/master/notebooks/starcraft2_replay_analysis.ipynb [3]
  • For Runtime select the Python 3.5 option. [4]



• Click the Create button.

• TIP: Once successfully imported, the notebook should appear in the Notebooks section of the Assets tab.

5. Add the replay file

Add the replay to the notebook

• This notebook uses the dataset king_sejong_station_le.sc2replay. We need to load this assets to our project.

• From the new project Overview panel, click + Add to project on the top right and choose the Data asset type.



• A panel on the right of the screen will appear to assit you in uploading data. Follow the numbered steps in the image below.

  • Ensure you're on the Load tab. [1]
  • Click on the browse option. From your machine, browse to the location of the king_sejong_station_le.sc2replay file in this repository, and upload it. [not numbered]
  • Once uploaded, go to the Files tab. [2]
  • Ensure the files appear. [3]



Create an empty cell for replay code and credentials

Use the + to create an empty cell to hold the inserted code and credentials. You can put this cell at the top or anywhere before the Load the replay cell.

Insert to code

After you add the file, use its Insert to code drop-down menu. Make sure your active cell is the empty one created earlier. Select Insert StreamingBody object from the drop-down menu.

Note: This cell is marked as a hidden_cell because it contains sensitive credentials.

Fix-up variable names

The inserted code includes a generated method with credentials and then calls the generated method to set a variable with a name like streaming_body_1. If you do additional inserts, the method can be re-used and the variable will change (e.g. streaming_body_2).

Later in the notebook, we set replay_file = streaming_body_1. So you might need to fix the variable name streaming_body_1 to match your inserted code.

6. Add the Cloudant credentials to the notebook

Use the + button above to create an empty cell to hold the credentials. You can put this cell at the top or anywhere before Storing replay files. You should add a # @hidden_cell line to help you avoid sharing credentials (but be aware that giving people access to the notebook will give them access to your credentials).

Create a variable named credentials_1 (which is used later in the notebook) and paste the Cloudant credentials JSON as the value. The apikey and username will be used. The other credential keys may be included -- they will be ignored.

The code cell should look like this:

# @hidden_cell
credentials_1 = {
  "apikey": "Aa_aAaaa9aAAAa9999A9aa999aaaAaaaAaaA-AAAAA-A",
  "username": "a9999aa9-9aa9-9999-aa99-9a999aaa9a99-bluemix",
  "other": "other credential keys/values are ignored..."
}

7. Run the notebook

When a notebook is executed, what is actually happening is that each code cell in the notebook is executed, in order, from top to bottom.

Each code cell is selectable and is preceded by a tag in the left margin. The tag format is In [x]:. Depending on the state of the notebook, the x can be:

• A blank, this indicates that the cell has never been executed.

• A number, this number represents the relative order this code step was executed.

• A *, this indicates that the cell is currently executing.

• Click the (►) Run button to start stepping through the notebook.

8. Analyze the results

The result of running the notebook is a report which may be shared with or without sharing the code. You can share the code for an audience that wants to see how you came your conclusions. The text, code and output/charts are combined in a single web page. For an audience that does not want to see the code, you can share a web page that only shows text and output/charts.

Basic output

Basic replay information is printed out to show you how you can start working with a loaded replay. The output is also, of course, very helpful to identify which replay you are looking at.

Data preparation

If you look through the code, you'll see that a lot of work went into preparing the data.

Unit and building groups

List of strings were created for the known units and groups. These are needed to recognize the event types.

Event handlers

Handler methods were written to process the different types of events and accumulate the information in the player's event list.

The ReplayData class

We created the ReplayData class to take a replay stream of bytes and process them with all our event handlers. The resulting player event lists are stored in a ReplayData object. The ReplayData class also has an as_dict() method. This method returns a Python dictionary that makes it easy to process the replay events with our Python code. We also use this dict to create a Cloudant JSON document.

Visualization

To visualize the replay we chose to use 2 different types of charts and show a side-by-side comparison of the competing players.

• Nelson rules charts
• Box plot charts

We generate these charts for each of the following metrics. You will get a good idea of how the players are performing by comparing the trends for these metrics.

• Mineral collection rate
• Vespene collection rate
• Active workers count
• Supply utilization (used / available)
• Worker/supply ratio (workers / supply used)

Box plot charts

Once you get to this point, you can see that generating a box plot is quite easy thanks to pandas DataFrames and Seaborn BoxPlot.

The box plot is a graphical representation of the summary statistics for the metric for each player. The "box" covers the range from the first to the third quartile. The horizontal line in the box shows the mean. The "whisker" shows the spread of data outside these quartiles. Outliers, if any, show up as markers outside the whisker lines. An added swarmplot provides another representation of the distribution of values.

For each metric, we show the players statistics side-by-side using a box plots.

In the above screen shot, you see side-by-side comparison of 4 metrics. In this contest, Neeb had the advantage. In addition to the box which shows the quartiles and the whisker that shows the range, this example has outlier indicators. In many cases, there will be no outliers.

Nelson rules charts

The Nelson rules charts are not so easy. You'll notice quite a bit of code in helper methods to create these charts.

The base chart is a Bokeh plotting figure with circle markers for each data point in the time series. This shows the metric over time for the player. The player charts are side-by-side to allow separate scales and plenty of additional annotations.

We add horizontal lines to show our x-bar (sample mean), 1st and 2nd standard deviations and upper and lower control limits for each player.

We use our detect_nelson_bias() method to detect 9 or more consecutive points above (or below) the x-bar line. Then, using Bokeh's add_layout() and BoxAnnotation, we color the background green or red for ranges that show bias for above or below the line respectively.

Our detect_nelson_trend() method detects when 6 or more consecutive points are all increasing or decreasing. Using Bokeh's add_layout() and Arrow, we draw arrows on the chart to highlight these up or down trends.

The result is a side-by-side comparison that is jam-packed with statistical analysis.

In the above screen shot, you see the time/value hover details that you get with Bokeh interactive charts. Also notice the different scales and the arrows. In this contest, Neeb made two early pushes and got an advantage in minerals. If you run the notebook, you'll see other examples showing where the winner got the advantage.

Stored replay documents

You can browse your Cloudant database to see the stored replays. After all the loading and parsing we stored them as JSON documents. You'll see all of your replays in the sc2replays database and only the latest one in sc2recents.

9. Save and share

How to save your work

Under the File menu, there are several ways to save your notebook:

• Save will simply save the current state of your notebook, without any version information.
• Save Version will save your current state of your notebook with a version tag that contains a date and time stamp. Up to 10 versions of your notebook can be saved, each one retrievable by selecting the Revert To Version menu item.

How to share your work

You can share your notebook by selecting the “Share” button located in the top right section of your notebook panel. The end result of this action will be a URL link that will display a “read-only” version of your notebook. You have several options to specify exactly what you want shared from your notebook:

• Only text and output will remove all code cells from the notebook view.
• All content excluding sensitive code cells will remove any code cells that contain a sensitive tag. For example, # @hidden_cell is used to protect your IBM Cloud credentials from being shared.
• All content, including code displays the notebook as is.
• A variety of download as options are also available in the menu.

Sample output

The the notebook with output included can be viewed here.

Troubleshooting

See DEVELOPING.md.
